Formula-G1™ PLANT GROWTH INTELIGENCE

RESEARCH PLATFORM FOR DISCOVERING OPTIMAL FORMULAS OF PLANT DEVELOPMENT

Formula G1 is a patented cybernetic system that integrates natural factors, physics and biology into a single programmable environment.

Our platform allows researchers and students to explore how individual signals and their combinations influence plant growth and development.

REMOTE ACCESS
Control and monitor from anywhere in the world
RESEARCH PLATFORM
For scientists, students and plant enthusiasts worldwide
PROGRAMMABLE ENVIRONMENT
Hundreds of signals, combinations and sequences
INCLUSIVE ACCESS
Programs for people with disabilities and education

PATENTED TECHNOLOGY

United States Patent US 12,600,768 B2 Cybernetic System for Plant Growth Control


Taiwan Patent I 803123


Patents protect the core technology of integrated plant growth management and control.


KEY CAPABILITIES
15 Types of Water
Different origins, Redox levels and deuterium content
10 Dosing Units
Macro & microelements in different sizes, ready formulas
Advanced Mixing Reactor
Precise control of pH, EC, O₂, temperature, mixing speed and time
Independent Root & Shoot Environments
Full control of all physical, chemical and biological factors
16 Spectral Channels
256 levels of intensity for each channel, programmable light formulas
Real-time Monitoring & Data Analysis
Sensors, data acquisition and intelligent analysis

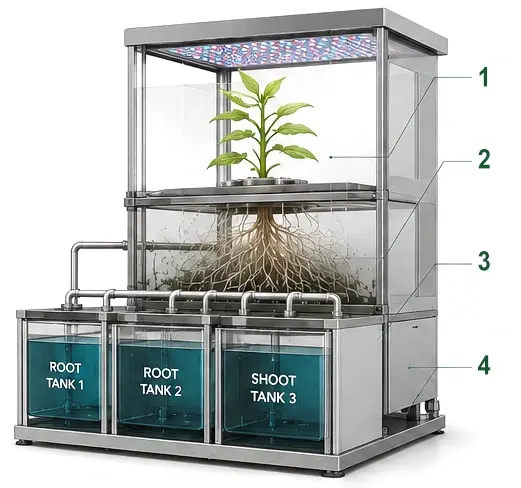

FG1 RESEARCH BOX
1. SHOOT ENVIRONMENT Temperature, Humidity, Air Flow, CO₂, Air Ionization, Cold Mist
2. PLANT INTERFACE Holder Plate with Sensors, UVB & Full Spectrum LED, Heating, Magnetic Field, Vibration, Weight Monitoring
3. ROOT ENVIRONMENT Nutrient Solution, Temp., pH, EC, ORP, Ozone, UV, Electrodes, Irrigation/Aeroponics/Drip
4. NUTRIENT SOLUTION TANKS 2 Tanks for Root Zone
1 Tank for Shoot Zone
(Cold Mist / Foliar Feeding)


THE FORMULA G1 SYSTEM – FROM WATER TO PLANT RESPONSE

1. WATER
15 Types of Water
  • City Water (Filtered)
  • Rain Water (Filtered)
  • Distilled Water
  • Redox -500 / +500
  • pH   0 - 14
  • Deuterium 10 - 150 ppm
2. NUTRITION
10 Dosing Units
  • Macroelements
  • Microelements
  • Trace Elements
  • Amino Acids
  • Vitamins
  • Organic Acids
  • Enzymes
  • Other Solutions
  • Ready Formulas
  • Custom Mix
3. REACTOR (ADVANCED MIXING SYSTEM)
Advanced Mixing Reactor
  • pH Control
  • EC Control
  • O₂ Saturation Control
  • Temperature Control
  • Mixing Speed Control
  • Mixing Time Control
4. WATER STRUCTURE
Water Structuring Options
Redox Adjustment
Deuterium Control
Cluster Structuring
Magnetic / Other Technologies

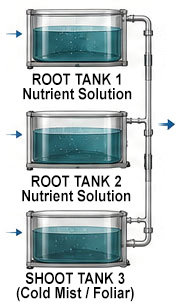

5. TANKS
Tanks System
6. PLANT MODULE
Plant Module
  • Holder Plate with Sensors
  • Heating Around Stem
  • UVB / UVA & Full Spectrum LED
  • 16 Spectrum LED
  • Magnetic Field (Upper & Lower)
  • Vibration
  • Weight Monitoring
7. ENVIRONMENTS
ROOT ENVIRONMENT
  • Hydroponics / Aeroponics / Drip
  • pH, EC, ORP
  • Temperature Control
  • Ozone
  • UV (UVA, UVB, UVC)
  • Electrodes (Electrodialysis)
  • Irrigation / Mist Schedule
SHOOT ENVIRONMENT
  • Temperature, Humidity
  • Air Flow, Air Ionization
  • Cold Mist (Nutrition / Protection)
  • CO₂ Control
8. RESPONSE & DATA
Plant Response
↓
Sensors & Monitoring
(Real-time)
↓
Data Analysis
& Formula Discovery


FORMULA DISCOVERY – THE POWER OF COMBINATIONS

Hundreds of Signals
Individually controllable
Time & Sequence
Critical for results
Combinations
Create the Formula
Plant Response
Measured in real time
Knowledge
Leads to Real Results
Formula G1 – Turning Natural Factors into Knowledge, from Research to Real Results.
TECHNICAL HIGHLIGHTS
  • ✓ Programmable environment with hundreds of parameters
  • ✓ Independent control of root and shoot zones
  • ✓ 16 spectral channels with 256 intensity levels each
  • ✓ Real-time sensors and intelligent monitoring
  • ✓ Remote access for global research collaboration
  • ✓ Platform for research, education and innovation



Land Green & Technology Co., Ltd.
